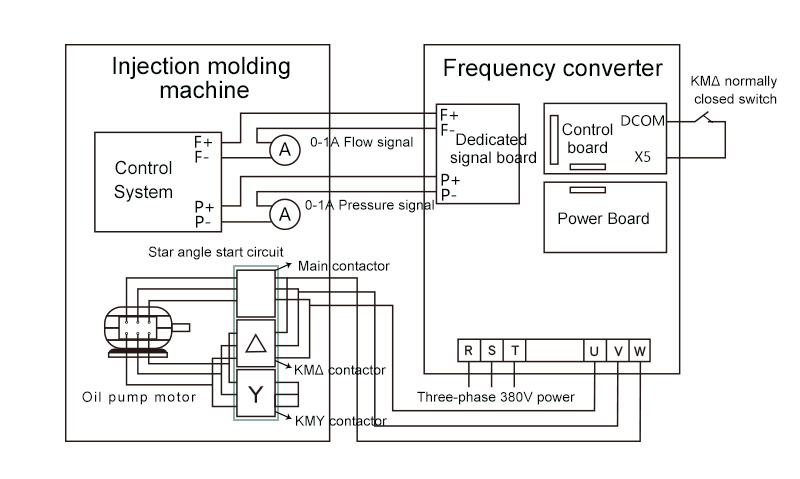

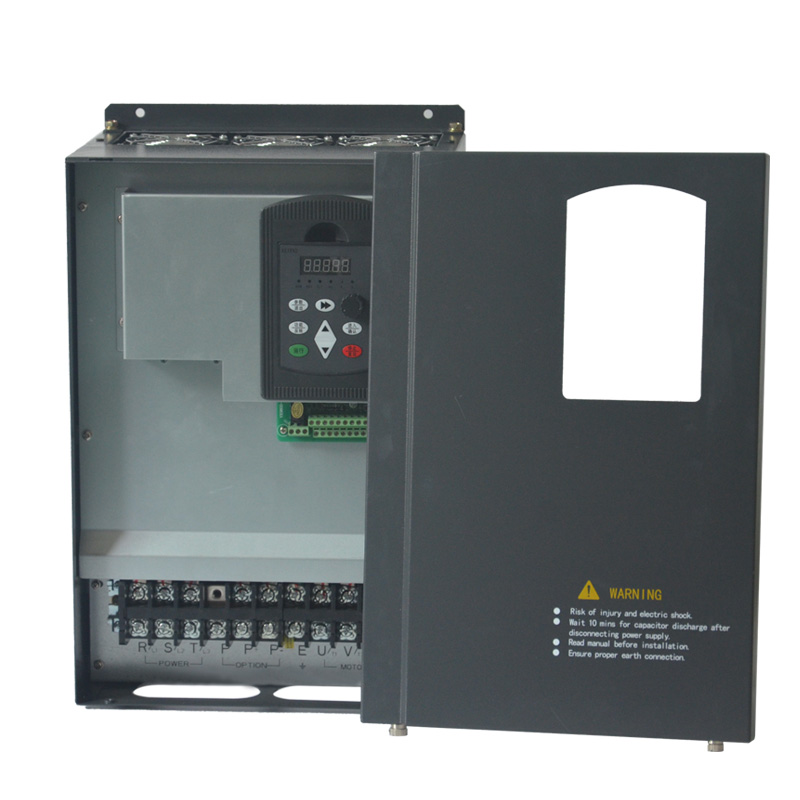

R, S, T are input terminals of three-phase power supply of frequency converter.

U, V, W are output terminals of frequency converter, and connected three-phase asynchronous motor.

PRODUCT ADVANTAGE

1. Speed control installation

A. Provide detailed debugging information for free, please ask us in advance.

B. The installation process does not change the original system, it is simple and quick.

C. If there is interference during the operation of the equipment, you can purchase a ferrite magnetic ring to solve.

2. Technical characteristics

A. The inverter has a built-in signal conversion board that supports 0-1A signals.

B. This is our product developed for old-fashioned injection molding machines.

3. After installation effect

A. Reduced current during startup to reduce impact on the grid.

B. Reduce oil heating and reduce cooling water consumption.

C. Reduce mechanical wear and extend equipment life.

D. Multiple protection to reduce equipment failure rate.

? Details of our products.

1. 5-digit tube display
2. High quality Components

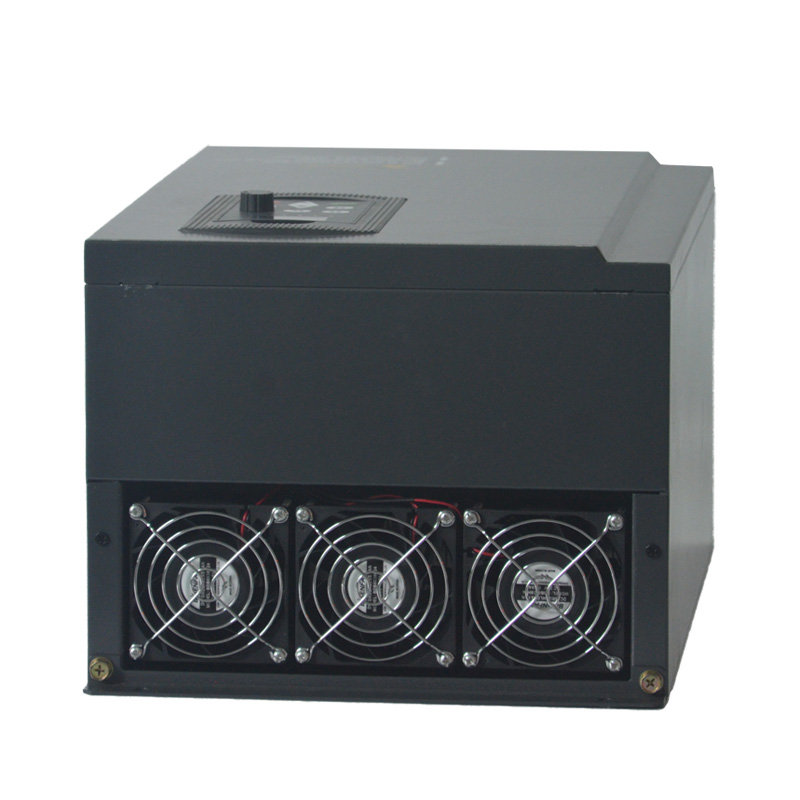

3. DC Heat Dissipating Fan

4. Isolated aluminium heat dissipation base

5.

6.
